Fall 2020Lab 2: Programming Hardware
The purpose of this lab is to give you experience writing VHDL code and using the seven-segment displays on either the board or the animation tool. There are four 7-segment displays on the DE1 board (User Manual) (and, likewise, in the animation tool). Each one consists of seven individual bars which can be used to create numbers or letters. In particular, we use them to display the hexadecimal numbers 0 through F, so we often refer to them as the hex displays.
In the lab, we will light up the four bottom segments in a pattern: one at a time will be unlit in a clockwise manner as shown in this recording of the animation. The lights will be driven by a counter.
Tasks
- If you are using Quartus and the board, follow these instructions
+ (more detail)
- Setup a New Project
Start Quartus. Follow the new project wizard and create a new directory for project 2. Call your first project flash and put it in a subdirectory of your project2 directory. This is the name of the project and the top level entity, but it will not be the only design file you create for this project. You will be placing multiple design files into the same project and directory so you can include one or more designs into the top-level entity.
During the project creation, set the Device to a Cycline II and set the device model to EP2C20F484C7.
- Create a New VHDL File Using a Template
The next step is to create a simple digital circuit with four inputs and four outputs. The four inputs will be from a counter and the four outputs will ultimately map to the seven-segment display. A high signal turns a segment off, and a low signal turns a segment on (YES, this is not a typo - it is the opposite of what you might expect). We want to unlight one segment at a time, so if we interpret the four binary inputs as a number, each output should be high ('1') for a sequence of four consecutive numbers (e.g. 0 to 3). We will make this circuit into a symbol to be used by the top-level design file, but it is not the top-level file itself (which means you shouldn't name it flash.vhd).

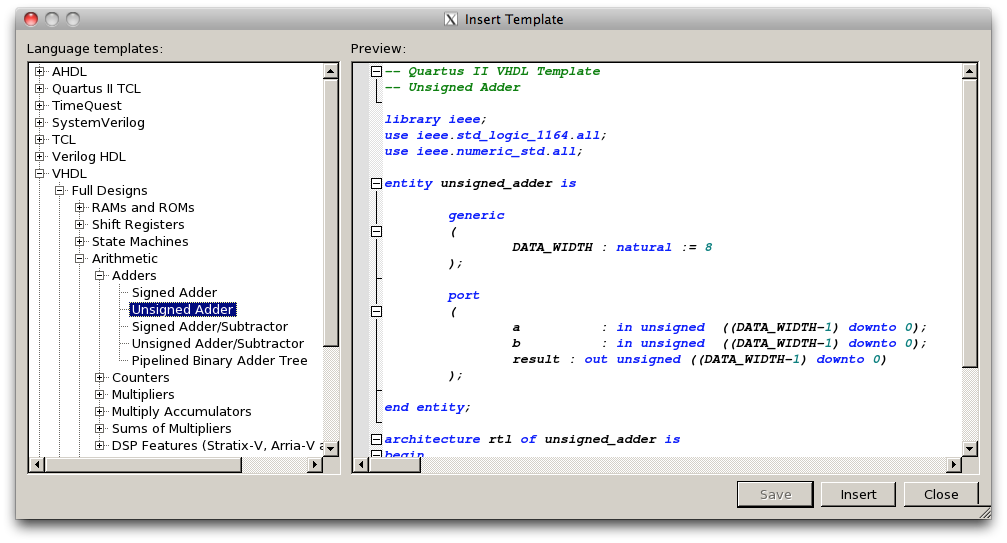

Select File->New and create a new VHDL file. VHDL is a programming language for specifying hardware configurations. Use the Edit->Insert Template option to select the Unsigned Adder full design template.
- Customize the Template
Change unsigned_adder to boxdriver in both the entity and architecture declarations. Then save the file as boxdriver.vhd.
For all VHDL files, be sure to make the filename match the entity name.
Simplify the template so it has only a single input signal (delete input b). Then remove the generic block and make both the input and output be std_logic_vector (3 downto 0). The inputs are now standard logic vectors with 4 bits, indexed from 3 down to 0, with index 3 being the most significant bit.
- Start Building the Circuit

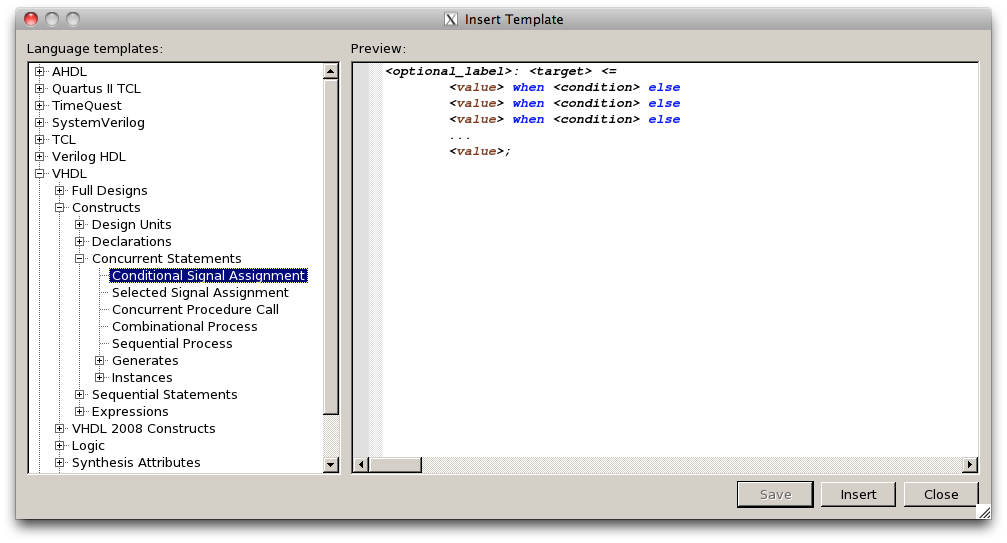

Delete the addition line in the architecture block and then insert the template for a conditional signal assignment using Edit->Insert Template.
Make the receiving signal be the first bit of the result output signal: result(0). Make the right side assign a '1' to result when a is "0000", "0001", "0010", or "0011" and otherwise '0'. The expression should look like the following.
result(0) <= '1' when a = "0000" or a = "0001" or a = "0010" or a = "0011" else '0';
The above is called a conditional signal assignment. This statement is an asynchronous statement, which means it is running continuously, in parallel to any other statements in your program. Whenever the condition variable a on the right side changes, the value of the left side is updated.
Do the same for the other three result outputs, but make each one a '1' for a different set of four consecutive counter values. So result(1) should be '1' when the input a is equal to 4, 5, 6, or 7 (binary).
- Add the File to the Project
Select Project->Add current file to add the VHDL file to the current project. Then select File->Create symbol file so that you can include the project in other project files. This may require you to fix any bugs in the code. If you just want to check syntax on a VHDL file, select Processing->Analyze File.
- Simulate the Circuit
Simulate the box driver file. Download this test bench file and take a look at it. Then use ghdl to compile it and your boxdriver.vhd file to make a waveform file.
ghdl -a boxtest.vhd boxdriver.vhd
ghdl -e boxtest
ghdl -r boxtest --vcd=boxtest.vcd
gtkwave boxtest.vcd &
Take a look at the output and make sure you understand what it says about your circuit before continuing.
- Create the Top-Level Design File

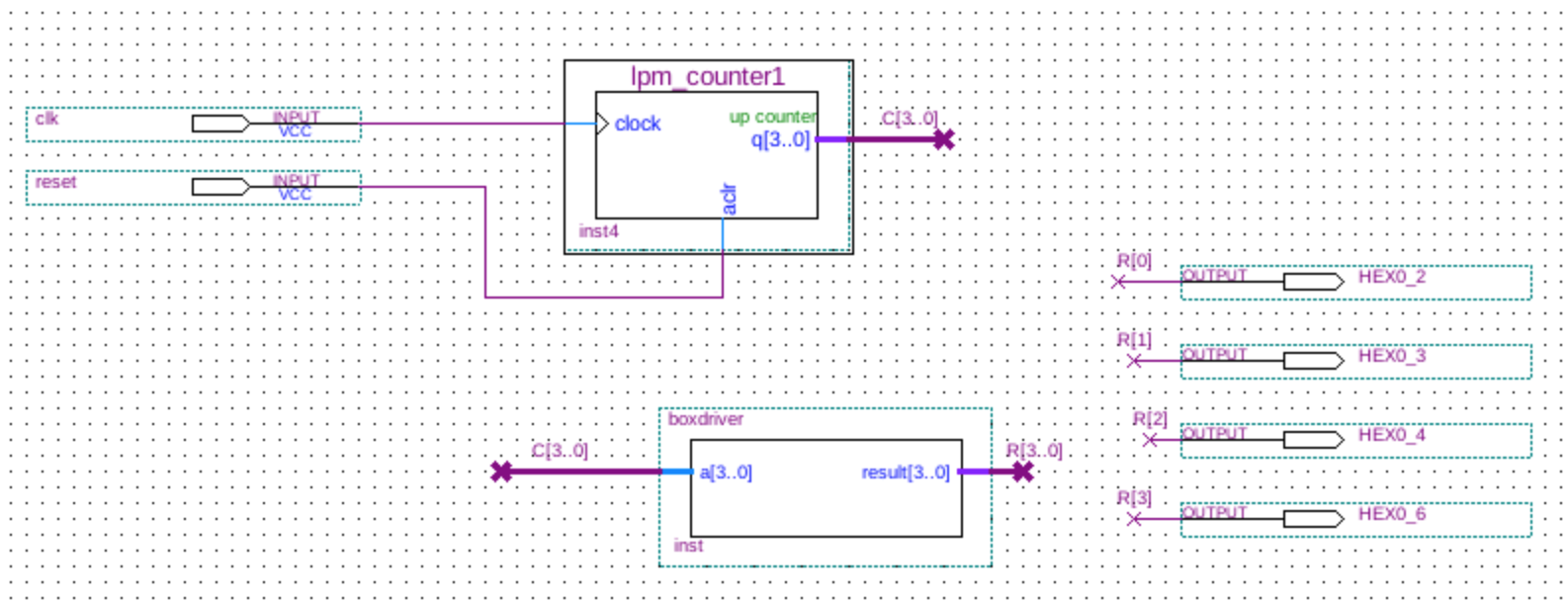

Create a new BDF file and save it as flash.bdf. Add 2 input pins and 4 output pins to the design. Name the two input pins clk and reset. Name the four output pins HEX0_2, HEX0_3, HEX0_4, and HEX0_6.
Add an lpm_counter device: megafunctions->arithmetic. Set up the clock to be 4-bits with a clock and asynchronous clear as the only inputs. After inserting it into your design, hook up the clock and aclr signals from the input pins (clk and reset).
Add the boxdriver symbol to the graphic design file. Hook the counter outputs to the boxdriver inputs. Then hook the four boxdriver outputs to the four output pins. The circuit should look like the diagram below.
Save the file again and add the file to the project. Then compile the project.
- Make Pin Assignments for the Board
Back in Quartus, go to Assignments->Pin Planner. We need to make sure the input and output pins are connected intelligently when we download the design to hardware.
You will want to have the DE1 User Manual handy when assigning pins.
Use the popup menus (or just type the names) in the location field for each pin to set them to the desired values, or just type the pin name (e.g. R22) into the pin field. Connect the clock to the first push button. Connect the reset to the second push button. Connect the four outputs to the segments 2, 3, 4 and 6 in the rightmost seven-segment display.
- Program the Board
Use the Tools->Programmer to download your circuit to the board. If the programmer says 'No Hardware', then select Hardware Setup and in the popup menu select USB blaster. Test out your circuit by holding down the reset push button (which is 0 when pressed) and then push the clock input.
- Setup a New Project
- If you are using Quartus, but not the boards, follow these instructions.
+ (more detail)
- Setup a New Project
Start Quartus. Follow the new project wizard and create a new directory for project 2. Call your first project flash and put it in a subdirectory of your project2 directory. This is the name of the project and the top level entity, but it will not be the only design file you create for this project. You will be placing multiple design files into the same project and directory so you can include one or more designs into the top-level entity.
During the project creation, set the Device to a Cycline II and set the device model to EP2C20F484C7.
- Create a New VHDL File Using a Template
The next step is to create a simple digital circuit with four inputs and four outputs. The four inputs will be from a counter and the four outputs will ultimately map to the seven-segment display. A high signal turns a segment off, and a low signal turns a segment on (YES, this is not a typo - it is the opposite of what you might expect). We want to unlight one segment at a time, so if we interpret the four binary inputs as a number, each output should be high ('1') for a sequence of four consecutive numbers (e.g. 0 to 3). We will make this circuit into a symbol to be used by the top-level design file, but it is not the top-level file itself (which means you shouldn't name it flash.vhd).
Select File->New and create a new VHDL file. VHDL is a programming language for specifying hardware configurations. Use the Edit->Insert Template option to select the Unsigned Adder full design template.
- Customize the Template
Change unsigned_adder to boxdriver in both the entity and architecture declarations. Then save the file as boxdriver.vhd.
For all VHDL files, be sure to make the filename match the entity name.
Simplify the template so it has only a single input signal (delete input b). Then remove the generic block and make both the input and output be std_logic_vector (3 downto 0). The inputs are now standard logic vectors with 4 bits, indexed from 3 down to 0, with index 3 being the most significant bit.
- Start Building the Circuit
Delete the addition line in the architecture block and then insert the template for a conditional signal assignment using Edit->Insert Template.
Make the receiving signal be the first bit of the result output signal: result(0). Make the right side assign a '1' to result when a is "0000", "0001", "0010", or "0011" and otherwise '0'. The expression should look like the following.
result(0) <= '1' when a = "0000" or a = "0001" or a = "0010" or a = "0011" else '0';
The above is called a conditional signal assignment. This statement is an asynchronous statement, which means it is running continuously, in parallel to any other statements in your program. Whenever the condition variable a on the right side changes, the value of the left side is updated.
Do the same for the other three result outputs, but make each one a '1' for a different set of four consecutive counter values. So result(1) should be '1' when the input a is equal to 4, 5, 6, or 7 (binary).
- Add the File to the Project
Select Project->Add current file to add the VHDL file to the current project. Then select File->Create symbol file so that you can include the project in other project files. This may require you to fix any bugs in the code. If you just want to check syntax on a VHDL file, select Processing->Analyze File.
- Simulate the Circuit
Simulate the box driver file. Download this test bench file and take a look at it. Then use ghdl to compile it and your boxdriver.vhd file to make a waveform file.
ghdl -a boxtest.vhd boxdriver.vhd
ghdl -e boxtest
ghdl -r boxtest --vcd=boxtest.vcd
gtkwave boxtest.vcd &
Take a look at the output and make sure you understand what it says about your circuit before continuing.
- Animate the Circuit
Animate the circuit using the python program vcd_movie.py, vcd_parser.py, boxtest.vcd, and a mapping file. Model the mapping file after those from lab and project 1 and use it to map the four seven segment display outputs to the corresponding segments (Aout bit 0 to HEX 0 segment 2, Aout bit 1 to HEX 0 segment 3, Aout bit 2 to HEX 0 segment 4, and Aout bit 3 to HEX 0 segment 6). Then, run the animation program. Be sure to run Python from the directory that contains the Python programs and specify the locations of the vcd and mapping files with any necessary path information.
- Setup a New Project
- If you are just using ghdl and gtkWave or the Python animation tool, then follow these instructions.
+ (more detail)
- Setup a New Project
Create a directory for your lab 2 files.
If you want to use Apporto, you can use Quartus merely as a VHDL editor. Or you can use vi as your editor.
If you are up for the fun that is installing new software and you are trying to avoid Apporto, then you can install GHDL and GtkWave on your computer. You will also want to use Python2.7 to run vcd_movie.py and vcd_parser.py. Stephanie was able to do this on her MacBook Pro. She
- Downloaded ghdl by downloading a directory with the binaries in it. I put them in cs232's main directory. (https://github.com/ghdl/ghdl/releases and went to macos release.
- Downloaded gtkWave for my laptop from here: https://sourceforge.net/projects/gtkwave/files/gtkwave-3.3.103-osx-app/ (followed the link to Native binary for MacOS from here: http://gtkwave.sourceforge.net)
- Create a New VHDL File Using a Template
The next step is to create a simple digital circuit with four inputs and four outputs. The four inputs will be from a counter and the four outputs will ultimately map to the seven-segment display. A high signal turns a segment off, and a low signal turns a segment on (YES, this is not a typo - it is the opposite of what you might expect). We want to unlight one segment at a time, so if we interpret the four binary inputs as a number, each output should be high ('1') for a sequence of four consecutive numbers (e.g. 0 to 3). We will make this circuit into a symbol to be used by the top-level design file, but it is not the top-level file itself (which means you shouldn't name it flash.vhd).
Download unsigned_adder.vhd, which we will be using as a template.
- Customize the Template
Change unsigned_adder to boxdriver in both the entity and architecture declarations. Then save the file as boxdriver.vhd.
For all VHDL files, be sure to make the filename match the entity name.
Simplify the template so it has only a single input signal (delete input b). Then remove the generic block and make both the input and output be std_logic_vector (3 downto 0). The inputs are now standard logic vectors with 4 bits, indexed from 3 down to 0, with index 3 being the most significant bit.
- Start Building the Circuit
Delete the addition line in the architecture block. We will be using four statements called conditional signal assignments to set the value for each bit in the result.
Below is the conditional signal assignment for the first bit, i.e. result(0). The right side assigns a '1' to result when a is "0000", "0001", "0010", or "0011" and otherwise '0'.
result(0) <= '1' when a = "0000" or a = "0001" or a = "0010" or a = "0011" else '0';
This statement is an asynchronous statement, which means it is running continuously, in parallel to any other statements in your program. Whenever the condition variable a on the right side changes, the value of the left side is updated.
Write analogous lines for the other three result outputs, but make each one a '1' for a different set of four consecutive counter values. So result(1) should be '1' when the input a is equal to 4, 5, 6, or 7 (binary).
- Simulate the Circuit
Simulate the box driver file. Download this test bench file and take a look at it. Then use ghdl to compile it and your boxdriver.vhd file to make a waveform file.
ghdl -a boxtest.vhd boxdriver.vhd
ghdl -e boxtest
ghdl -r boxtest --vcd=boxtest.vcd
gtkwave boxtest.vcd &
Take a look at the output and make sure you understand what it says about your circuit before continuing.
- Animate the Circuit
Animate the circuit using the python program vcd_movie.py, vcd_parser.py, boxtest.vcd, and a mapping file. Model the mapping file after those from lab and project 1 and use it to map the four seven segment display outputs to the corresponding segments (Aout bit 0 to HEX 0 segment 2, Aout bit 1 to HEX 0 segment 3, Aout bit 2 to HEX 0 segment 4, and Aout bit 3 to HEX 0 segment 6). Then, run the animation program. Be sure to run Python from the directory that contains the Python programs and specify the locations of the vcd and mapping files with any necessary path information.
- Setup a New Project
When you have completed the lab assignment, go ahead and get started on the second project.
